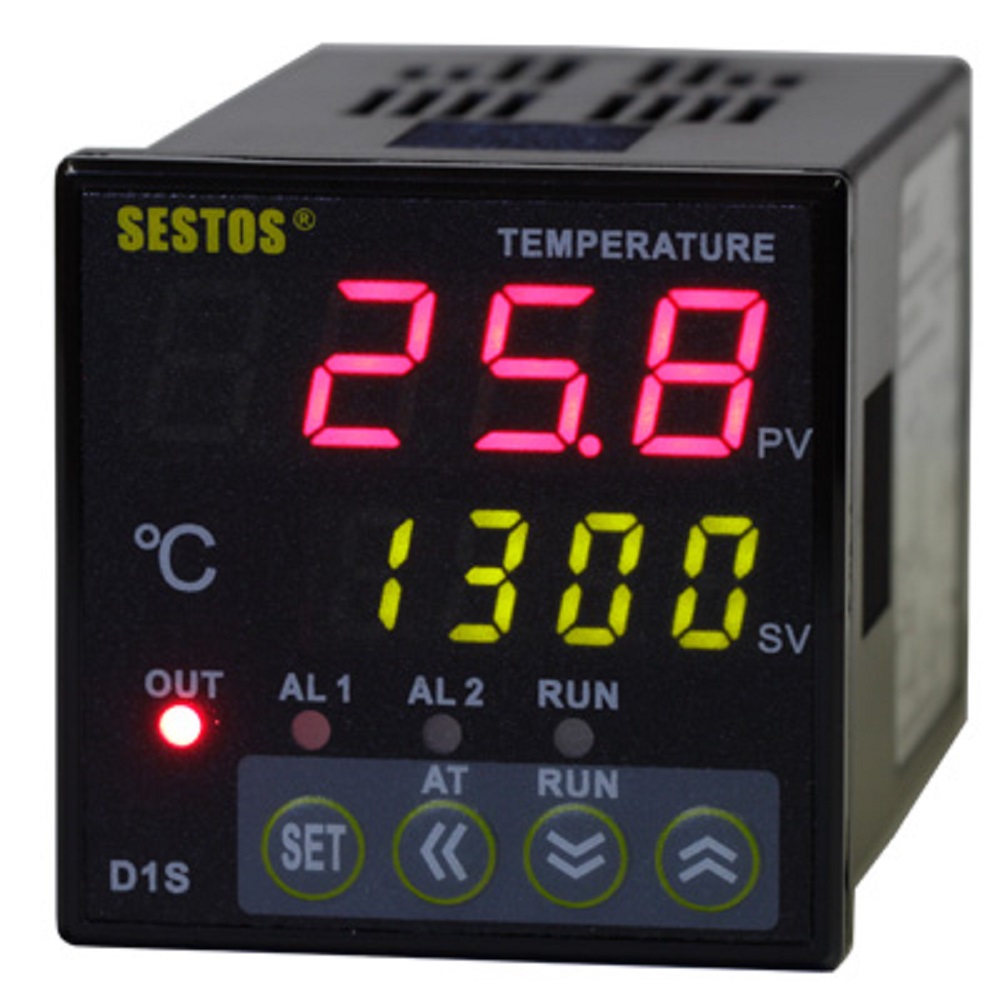

Digital Temperature Controller SESTOS D1S-VR-220 AC100-24V Range -50~1300 ℃ (K sensor) has a clear and user-friendly digital display that provides accurate temperature readings and control settings.
Digital Temperature Controller SESTOS D1S-VR-220
$42.99
Standard DIN - Sized for Installation Flexibility
This thermostat features a standard 48X48mm DIN size, offering users unparalleled flexibility in installation across diverse setups. Ideal for various industrial and commercial applications, the DIN - sized design ensures seamless integration into existing equipment. Keywords: standard DIN size, 48X48mm thermostat, installation flexibility
Wide - Range Temperature Control with Sensor Compatibility
Supporting multiple temperature sensors, this thermostat provides an extensive temperature control range from - 50°C to 1300°C. Whether it's for high - temperature industrial processes or low - temperature storage in different industries, it meets all temperature - regulating demands. Keywords: wide temperature control range, multi - sensor support, - 50 to 1300°C thermostat, industry - specific temperature control
High - Precision Temperature Management
Boasting a high - precision display and control accuracy of 0.1°C with an error range of ±0.2% FS, this temperature controller ensures top - notch reliability. It guarantees stable and accurate temperature control, crucial for applications where precision is paramount. Keywords: high - precision temperature controller, 0.1°C accuracy, ±0.2% FS precision, reliable temperature control
Versatile Control Modes: PID and ON/OFF
The thermostat offers both PID and ON/OFF control modes. Users can easily select the most suitable mode based on their specific requirements, enabling optimized temperature regulation for different scenarios. Keywords: multiple control modes, PID and ON/OFF thermostat, customizable temperature control
Enhanced Anti - Interference Capability
Equipped with a built - in digital filter, this thermostat effectively mitigates the impact of external interference on temperature control. It significantly improves the device's anti - interference ability, ensuring stable performance even in challenging environments. Keywords: strong anti - interference thermostat, built - in digital filter, anti - interference temperature control
Detailed Introduction to D1S - VR - 220 DIN(48X48mm) Temperature Controller
I. Product Model & Overview
The D1S - VR - 220 is a precisely engineered temperature controller with a standard 48X48mm DIN size. This compact dimension allows for seamless integration into diverse equipment setups, whether for new installations or retrofitting existing systems, offering an efficient temperature - control solution.
II. Sensor Compatibility
It stands out with its support for multiple sensor inputs, including K, S, Wre, T, E, J, B, N, CU50, and PT100. This versatility makes it suitable for a wide array of applications across different industries. In chemical high - temp reactions, K - type sensors are often used, while PT100 sensors are ideal for food cold - storage, enabling accurate temperature monitoring regardless of the scenario.
III. Wide Control Range
With a type - K sensor, it can manage temperatures from - 50°C to 1300°C. This broad span caters to extreme temperature demands, from low - temp material research like superconductors to high - temp industrial processes such as metal smelting and ceramic firing, fulfilling diverse industry requirements.
IV. High - Precision Indication & Control
The D1S - VR - 220 boasts a high - precision display and control, achieving 0.1°C accuracy with an error range of ±0.2%FS. In semiconductor manufacturing, where minute temperature variations can impact chip quality and yield, this precision ensures stable production and reliable experimental results.
V. Multiple Control Modes
PID Control Mode
The PID (Proportional - Integral - Derivative) control algorithm offers smooth and stable temperature regulation. Ideal for applications like pharmaceutical manufacturing and biological cultivation, where temperature stability is crucial, PID adjusts control parameters based on temperature deviations, maintaining consistent conditions.
ON/OFF Control Mode
The straightforward ON/OFF mode suits scenarios with less strict precision requirements but a need for quick response, such as regular furnaces or small - scale cooling systems. Users can easily switch between these two modes according to their specific needs.
VI. Anti - interference Ability
Equipped with a built - in digital filter, it effectively mitigates external electromagnetic interference and noise, ensuring stable operation in environments filled with electromagnetic devices or other interference sources. This safeguard maintains temperature control accuracy and reliability.
VII. Intelligent Technology & Safety Assurance
Automatic Adjustment Technology
This advanced feature automatically optimizes control parameters in response to temperature changes, eliminating the need for complex manual tuning. It adapts to different working conditions, enhancing equipment usability and operational efficiency, especially in dynamic production settings.
Parameter Locking Function
To prevent accidental parameter changes, the controller has a parameter - locking feature. This ensures system stability, especially for long - term operations or applications with strict parameter requirements, giving users peace of mind.
VIII. Power Supply & Output
Power Supply
Operating on an AC 110 - 240V power supply, it can adapt to various power sources across different regions and applications. This wide - voltage compatibility reduces the need for additional power conversion, enhancing its universality.
Output

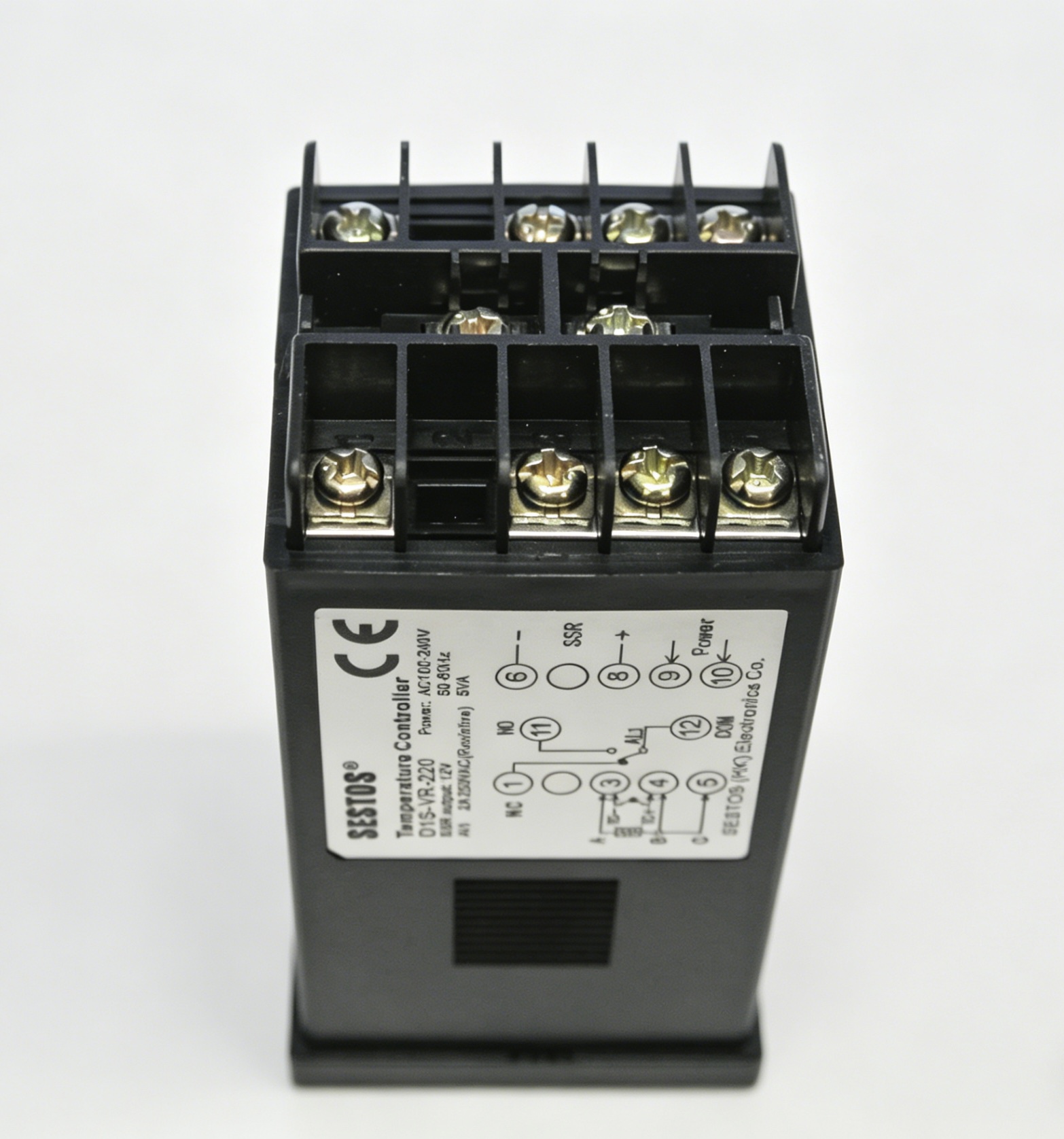

It provides 12V to drive a Solid - State Relay (SSR), known for its contact - less operation, long lifespan, and precise control. Additionally, an alarm relay (Alarm 1) is available to notify users of temperature deviations or equipment malfunctions, safeguarding the production process.
