Detailed Description of the DIN(48X48mm) Temperature Controller Model [Model Name]

I. Product Overview

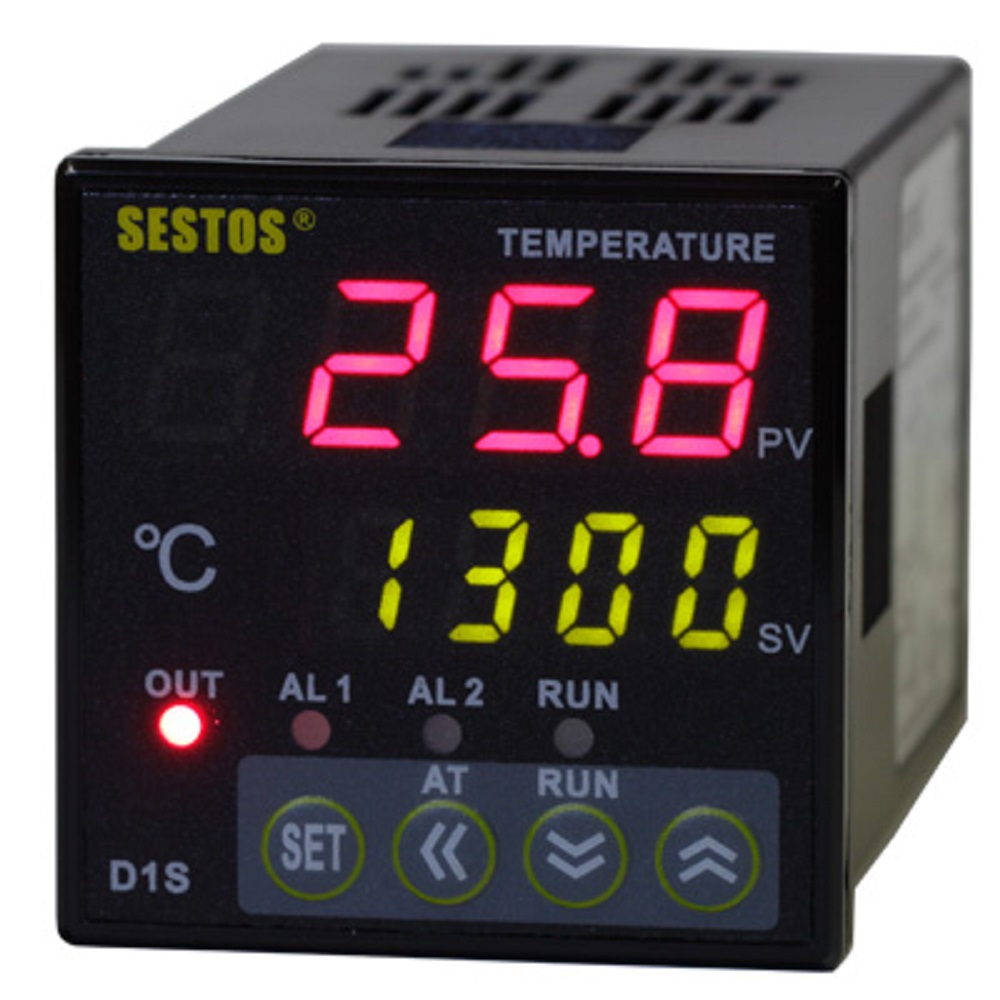

The [Model Name] is a DIN - sized (48X48mm) temperature controller meticulously designed for various industrial and laboratory scenarios. Its compact dimensions not only save space but also facilitate easy installation in diverse equipment, providing you with a precise temperature control solution.

II. Sensor Compatibility

One of the prominent features of this temperature controller is its support for multiple sensor inputs, including but not limited to types such as K, S, Wre, T, E, J, B, N, CU50, and PT100. This characteristic enables it to effortlessly adapt to the temperature - measuring requirements of different industries and application scenarios. For instance, in the chemical industry's high - temperature reaction vessels, type K sensors might be utilized; while in food cold storage environments, PT100 sensors are more suitable. Regardless of your specific usage scenario, the [Model Name] has the capability to work in tandem with your sensor, achieving accurate temperature monitoring and control.

III. Wide Control Range

Taking the type K sensor as an example, the control range of this temperature controller can span from extremely low temperatures to very high ones. It can handle a broad temperature spectrum, enabling it to cope with various extreme conditions, whether it's in low - temperature material research or high - temperature industrial processes like metal smelting. The [Model Name] is well - equipped to meet the diverse temperature - control demands of different industries.

IV. High - Precision Indication and Control

The [Model Name] boasts an extremely high indication and control precision. It can achieve a precision level that allows for minute adjustments and accurate readings. This high - precision feature is of utmost importance in scenarios where strict temperature control is required. For example, in semiconductor manufacturing, even the slightest temperature fluctuations can impact the performance and yield of chips. The [Model Name] can precisely regulate and display the temperature, ensuring that your production or experimental processes are consistently maintained within an accurate temperature environment, effectively enhancing product quality and the reliability of experimental results.

V. Multiple Control Modes

This temperature controller offers two control modes, namely PID and ON/OFF, allowing users to flexibly switch according to specific usage requirements and scenarios.

PID Control Mode

The PID (Proportional - Integral - Derivative) control mode is an advanced control algorithm. It can automatically adjust the control quantity based on the deviation between the current temperature and the set temperature, thereby achieving a smoother and more stable temperature control. This mode is suitable for scenarios with extremely high requirements for temperature stability, such as pharmaceutical manufacturing and biological cultivation. In these scenarios, even minor temperature fluctuations can affect product quality and the viability of biological samples. The PID control mode can anticipate and adjust according to the trend of temperature changes, maintaining temperature stability.

ON/OFF Control Mode

The ON/OFF control mode is relatively straightforward. When the temperature reaches the set value, the controller turns off the heating or cooling equipment; when the temperature deviates from the set value, the equipment is restarted. This mode is applicable to applications with relatively lower requirements for control precision but a need for quick response, such as ordinary furnaces or small - scale cooling systems. Users can easily switch between these two control modes according to their needs, fully unleashing the optimal performance of the [Model Name].

VI. Anti - interference Capability

In industrial environments or other complex usage locations, external interference may affect temperature control. To address this issue, the [Model Name] is equipped with a built - in digital filter. This filter can effectively reduce the impact of external electromagnetic interference and other noises on temperature control. Even in factory workshops filled with various electromagnetic devices or other places with numerous interference sources, the [Model Name] can operate stably, ensuring the accuracy and stability of temperature control, and providing reliable protection for your equipment operation.

VII. Intelligent Technology and Safety Assurance

Automatic Adjustment Technology

The [Model Name] incorporates advanced automatic adjustment technology. This technology can automatically optimize control parameters based on actual temperature changes. Without the need for users to carry out cumbersome manual debugging, the controller can automatically adapt to different working environments and load conditions, achieving efficient temperature control. This feature greatly simplifies the usage process and improves the equipment's ease of use and work efficiency.

Parameter Locking Function

Furthermore, to prevent accidental changes to control parameters due to misoperation, the [Model Name] is equipped with a parameter - locking function. Once this function is enabled, it becomes difficult for others to modify important control parameters, thus ensuring the stable operation of the system. This function is crucial for equipment that needs to operate stably for long periods or in scenarios with strict requirements for control parameters. Users can use it with confidence, without worrying about equipment malfunctions caused by misoperation.

VIII. Power Supply and Output

Power Supply

The [Model Name] supports a wide - voltage input range, which can accommodate both AC and DC power sources within a certain voltage range. This characteristic enables it to flexibly adapt to different power supplies. Whether your equipment uses an AC or DC power source, or even if the power supply voltage fluctuates within a certain range, the [Model Name] can operate normally without the need for additional power - conversion equipment, greatly enhancing the product's versatility and adaptability.

Output

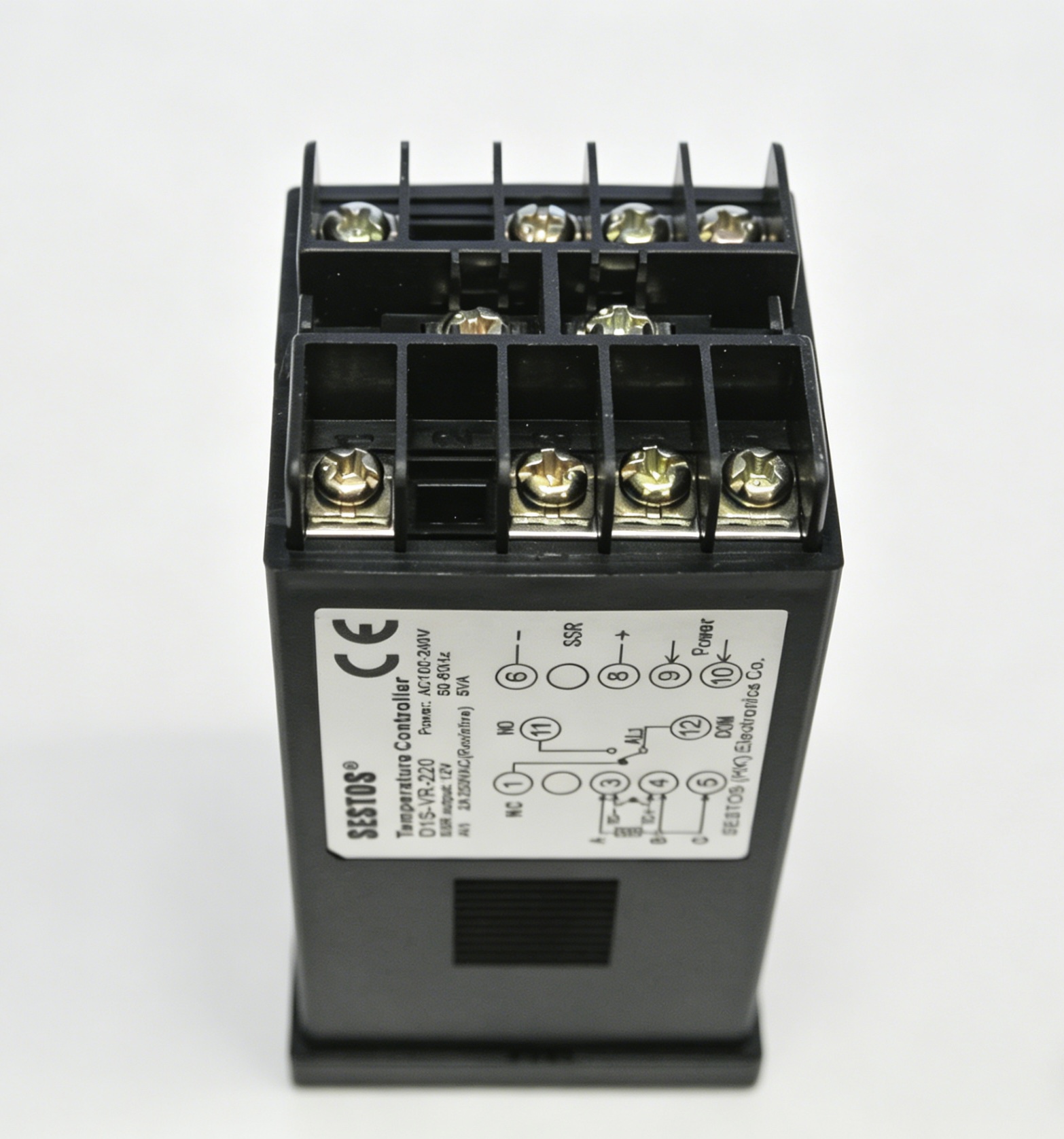

Regarding the output, the [Model Name] provides an output voltage to drive a Solid - State Relay (SSR). The SSR is a commonly used power - control component with advantages such as contact - less operation, long lifespan, and precise control. This output voltage can effectively drive the SSR, thereby controlling the operation of heating or cooling equipment. In addition, this temperature controller is equipped with an alarm output in the form of a relay. When the temperature exceeds the set range or the equipment malfunctions, the relay can trigger the alarm device, promptly notifying users to take measures and ensuring the safety of the equipment and the production process.
