Digital PID Temperature Controller SESTOS D1S-CR-220, AC 110-240V, -50 to 1300℃, 4-20mA Output, Relay Alarm, Multi Sensor Input
Digital PID Temperature Controller SESTOS D1S-CR-220
$42.99
Out of stock
Standard DIN 48x48mm Size & Universal Compatibility：This digital thermostat features an industry-standard 48x48mm DIN panel mount design for easy installation. Compatible with a wide range of sensors including K, S, Wre, T, E, J, B, N, CU50, and PT100, it adapts seamlessly to diverse heating and cooling applications.
Wide Control Range & High Accuracy：Delivers precise temperature regulation from -50°C to 1300°C (with K-type sensor). Features an indication accuracy of 0.1°C and control accuracy of ±0.2% FS, ensuring stable and reliable thermal management for demanding industrial processes.
Flexible PID & ON/OFF Control with Digital Filter：Offers both advanced PID control and straightforward ON/OFF control modes. An adjustable digital filter effectively suppresses external electrical interference, allowing optimal performance in noisy environments.
Auto-Tuning & Parameter Lock Functions：Equipped with self-tuning technology to automatically calculate optimal PID parameters, simplifying setup and enhancing control stability. The parameter lock feature prevents unauthorized setting changes, improving long-term reliability.
4-20mA Analog Output & Relay Alarm：Features a 4-20mA current output for precise proportional control of valves, SCR power controllers, or variable speed drives. A dedicated relay alarm output provides immediate fault indication, alerting users to abnormal conditions for enhanced system protection.

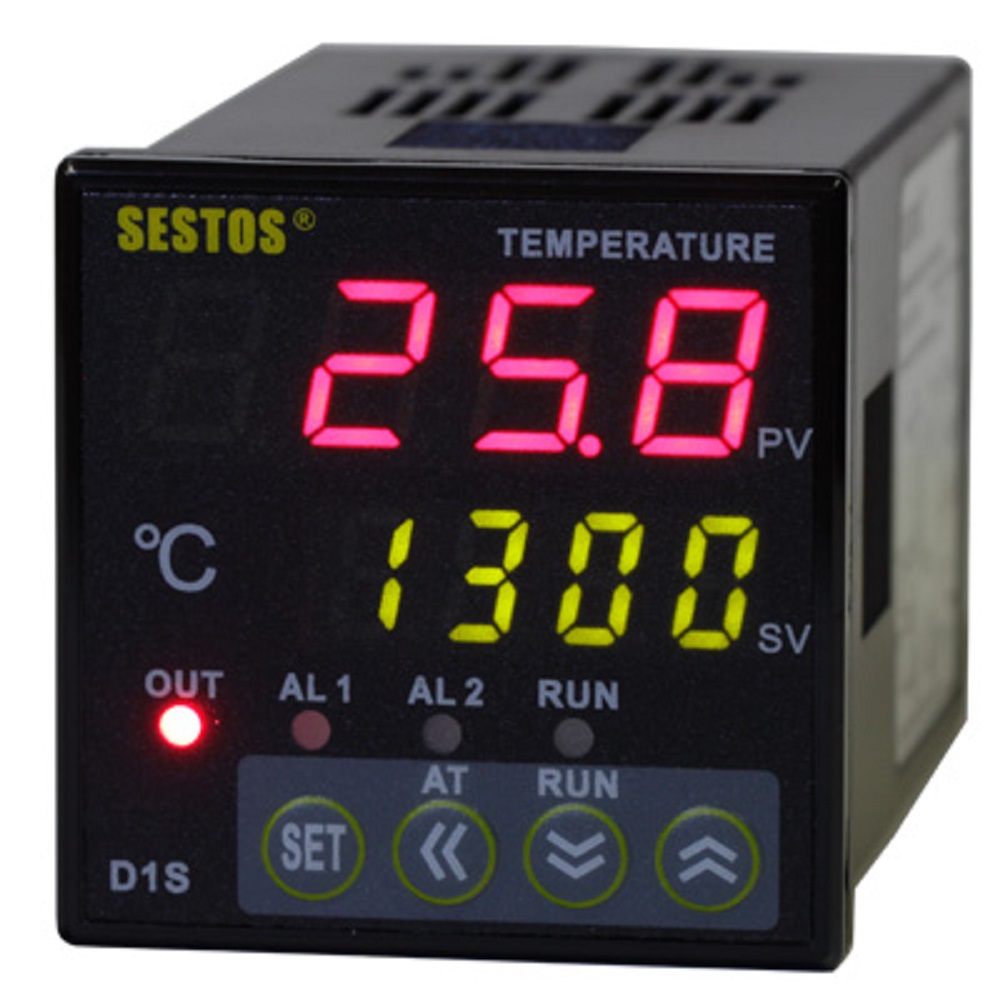

The SESTOS D1S-CR-220 is a high-performance digital PID temperature controller engineered for precise industrial thermal regulation. Housed in a standard DIN 48x48mm panel mount enclosure, this controller combines versatile input compatibility with flexible output options to meet a wide range of automation requirements.
This universal input thermostat supports multiple thermocouples (K, J, S, E, etc.) and RTDs (PT100, CU50), covering a broad temperature spectrum from -50°C to 1300°C. Users can select between PID control (with an adjustable digital filter to reject noise) and simple ON/OFF control for maximum application flexibility. The built-in auto-tuning function streamlines commissioning by automatically calculating optimal PID parameters, while the parameter lock secures all settings against unintended changes.
A key feature of the D1S-CR-220 is its 4-20mA analog current output, ideal for interfacing with proportional valves, SCR power controllers, or variable frequency drives. A separate relay alarm output provides independent fault monitoring and safety interlocking. Operating on a universal AC 110-240V power supply, this controller is a robust and reliable solution for ovens, furnaces, extruders, packaging machinery, and HVAC systems.
