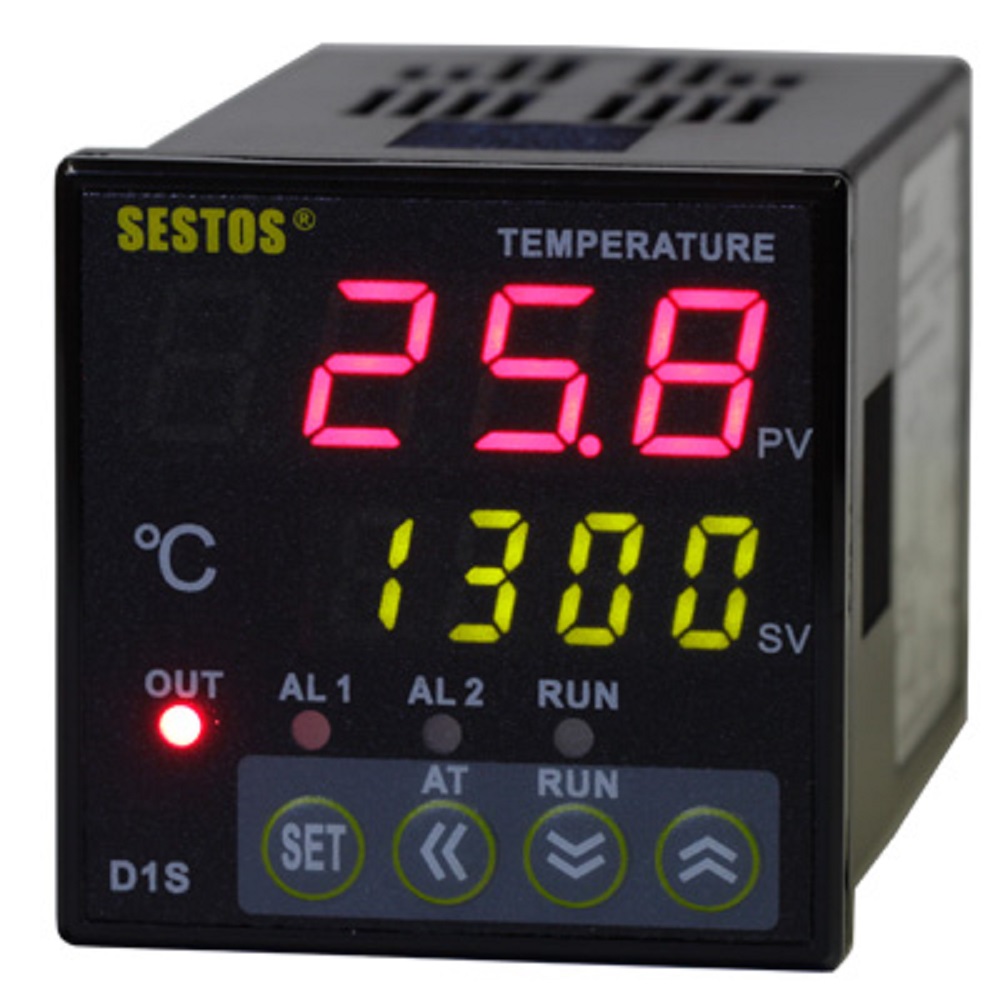

Digital PID Temperature Controller SESTOS D1S-2R-220, AC 100-240V, -50 to 1300℃, K Sensor, Relay Output Alarm
Digital PID Temperature Controller
$42.99
Out of stock
Standard DIN 48x48mm Panel Mount Design：This digital PID temperature controller features a compact 48x48mm DIN size housing with high precision and stability, suitable for a wide range of industrial temperature control applications.
Universal Multi-Sensor Compatibility：Supports a broad selection of sensor inputs including K, S, Wre, T, E, J, B, N, CU50, and PT100, allowing flexible adaptation to different heating and cooling processes.
Wide Control Range & High Accuracy：Delivers precise temperature regulation from -50°C to 1300°C (K sensor) with an indication accuracy of 0.1°C and control accuracy of ±0.2% FS, meeting the demands of strict thermal management.
Flexible PID & ON/OFF Control Modes：Offers both advanced PID control (with adjustable digital filter to reduce external interference) and simple ON/OFF control, providing versatile solutions for both complex automation and basic switching requirements.
Auto-Tuning & Parameter Lock Functions：Equipped with self-tuning technology to automatically optimize control parameters for more accurate performance. The parameter lock feature prevents unauthorized setting changes. Powered by AC 110-240V, with dual relay outputs (control output + alarm relay) for integrated system protection.
The SESTOS D1S-2R-220 is a high-performance digital PID temperature controller engineered for precise thermal regulation in industrial environments. Housed in a standard DIN 48x48mm panel mount enclosure, this controller provides exceptional accuracy and stability across a wide -50°C to 1300°C range (when used with a K-type sensor).
This universal input thermostat is compatible with multiple thermocouples (K, J, S, E, etc.) and RTDs (PT100, CU50), offering flexibility for diverse applications. Users can choose between PID control with an adjustable digital filter to suppress interference or straightforward ON/OFF control. The built-in auto-tuning function automatically calibrates control parameters for optimal performance, while the parameter lock secures all settings against accidental changes. Operating on a universal AC 110-240V power supply and featuring two relay outputs (one for primary control and one for alarm), the D1S-2R-220 is an ideal solution for ovens, extruders, packaging machinery, and HVAC systems.
